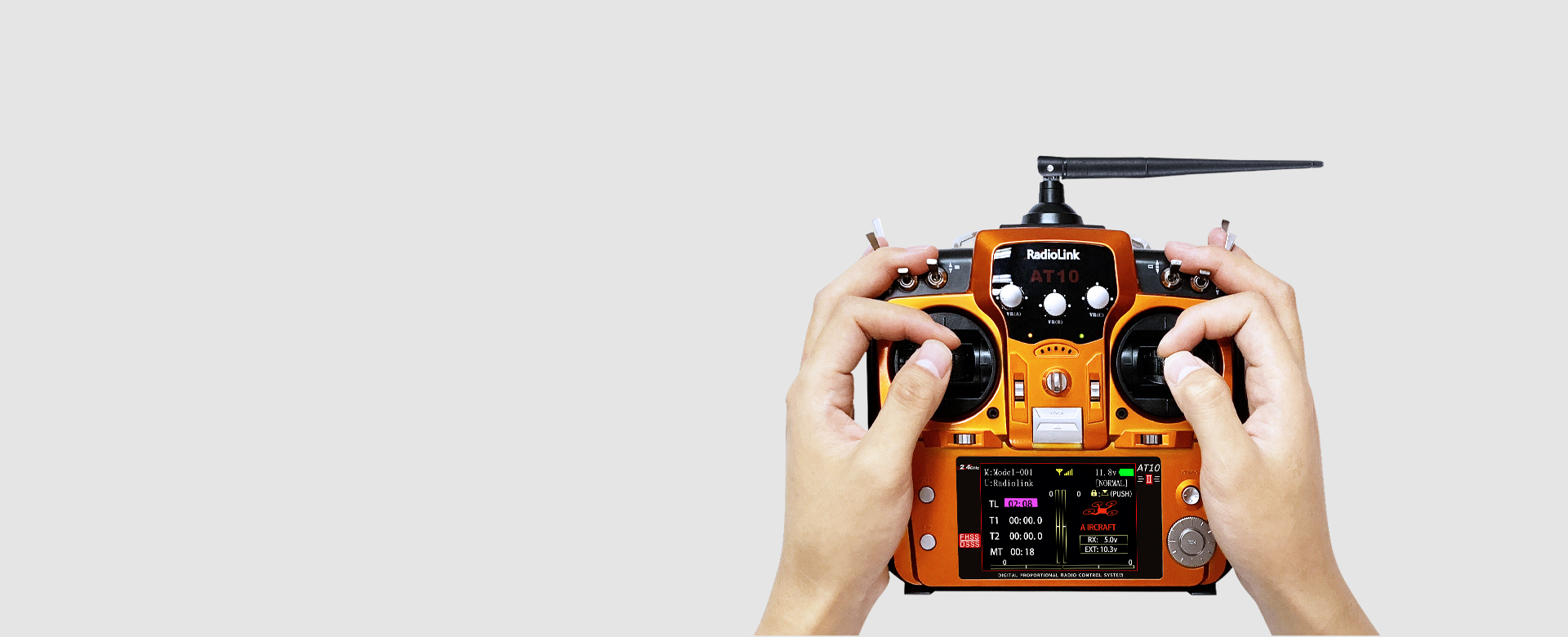

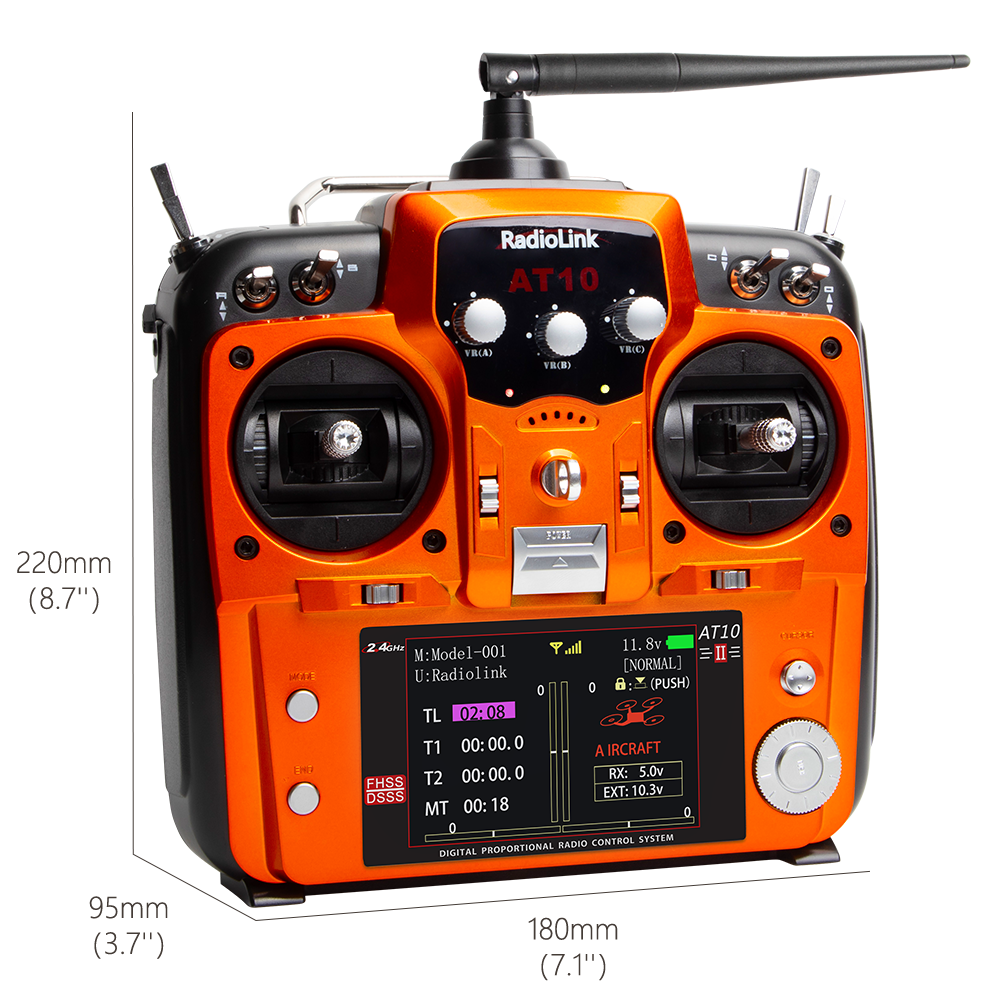

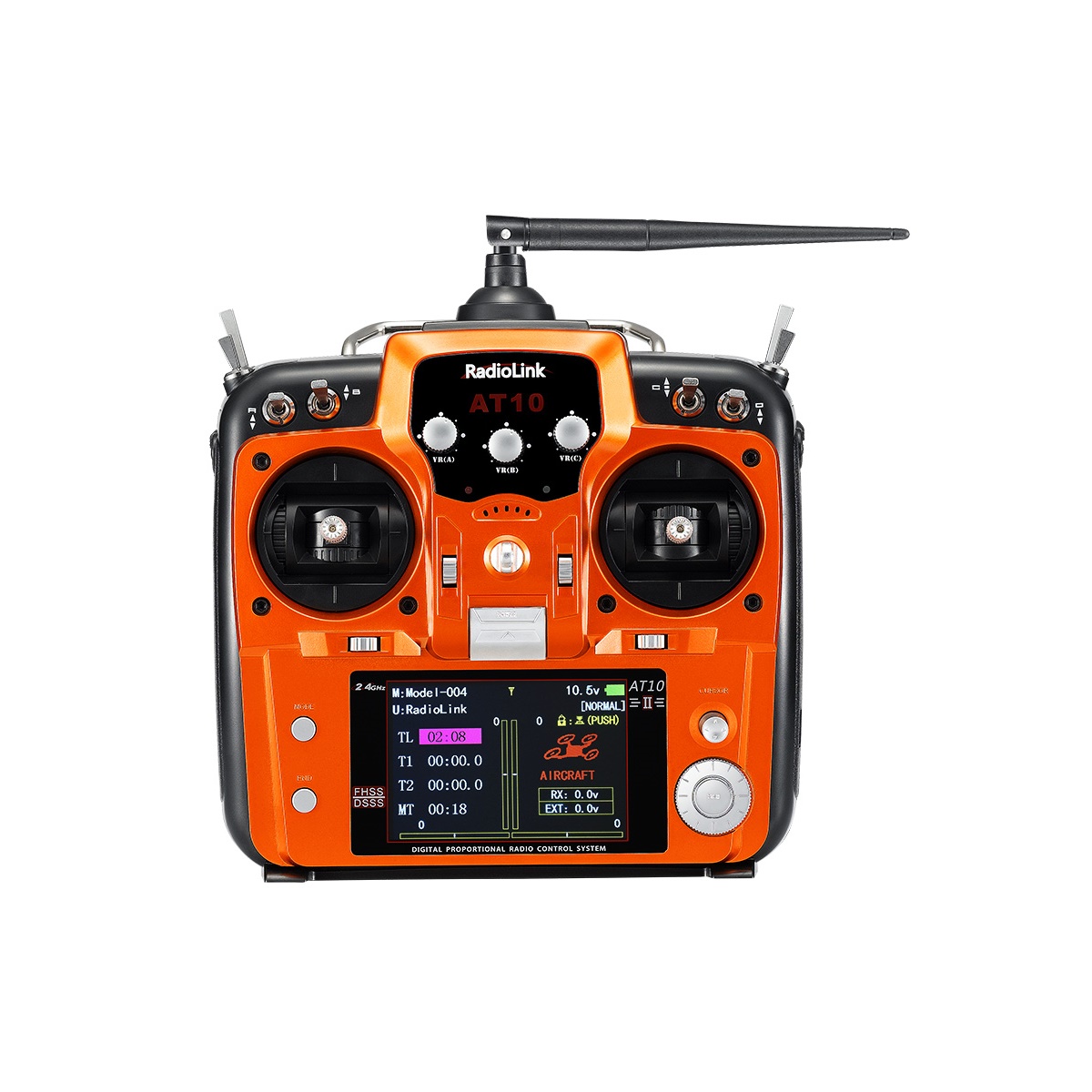

Radiolink AT10 II 2.4GHz 12CH RC Drone Remote with PRM-01 Transmitter and R12DS Receiver
Features
① Twelve channels (5 through 12 programmable by user)
② User name and model setup can be saved (up to 15 aircraft)
③ RSSI and Telemetry
④ Transmitter output greater than 100mW
⑤ Operating voltage 7.4 to 15.0v, amperage <105mA
⑥ Adjustable display brightness and contrast
⑦ Multiple alarms
⑧Fail Safe system: engages when a clean signal is lost or if the receiver battery is low
⑨ Servo reversing
⑩ Servo end-point adjustment
⑪ Adjustable servo travel limit (prevents pushrod jamming)
⑫ Servo Cycle function helps locate servo problems
⑬ Adjustable gimbal-stick length and tension
⑭ Dual, Triple and Exponential rates
⑮ Digitally controlled Trim switches
⑯ Sub-Trim program changes the servo neutral position
⑰ Compatible relievers: R12DS (Std pack), R12DSM, R9DS, R6DS and R6DSM
